Applications
Smart display

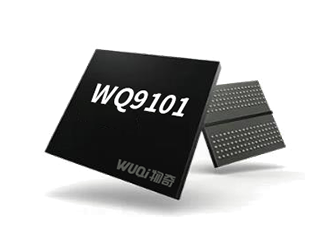

Smart TV solution developed based on the first 1x1 DBDC Wi-Fi 6 chip in China
Advantages
-
Adopts 2.4/5 GHz DBDC and supports Bluetooth 5.3.
-
Supports 80 MHz bandwidth, 1024QAM, and the PHY rate of 900 Mbit/s in maximum.
-
Supports external FEM and flexible coexistence of Wi-Fi and Bluetooth.
-
High-precision analog and RF circuits at high speed and in low power.
-
High market recognition from lots of world-class brands.

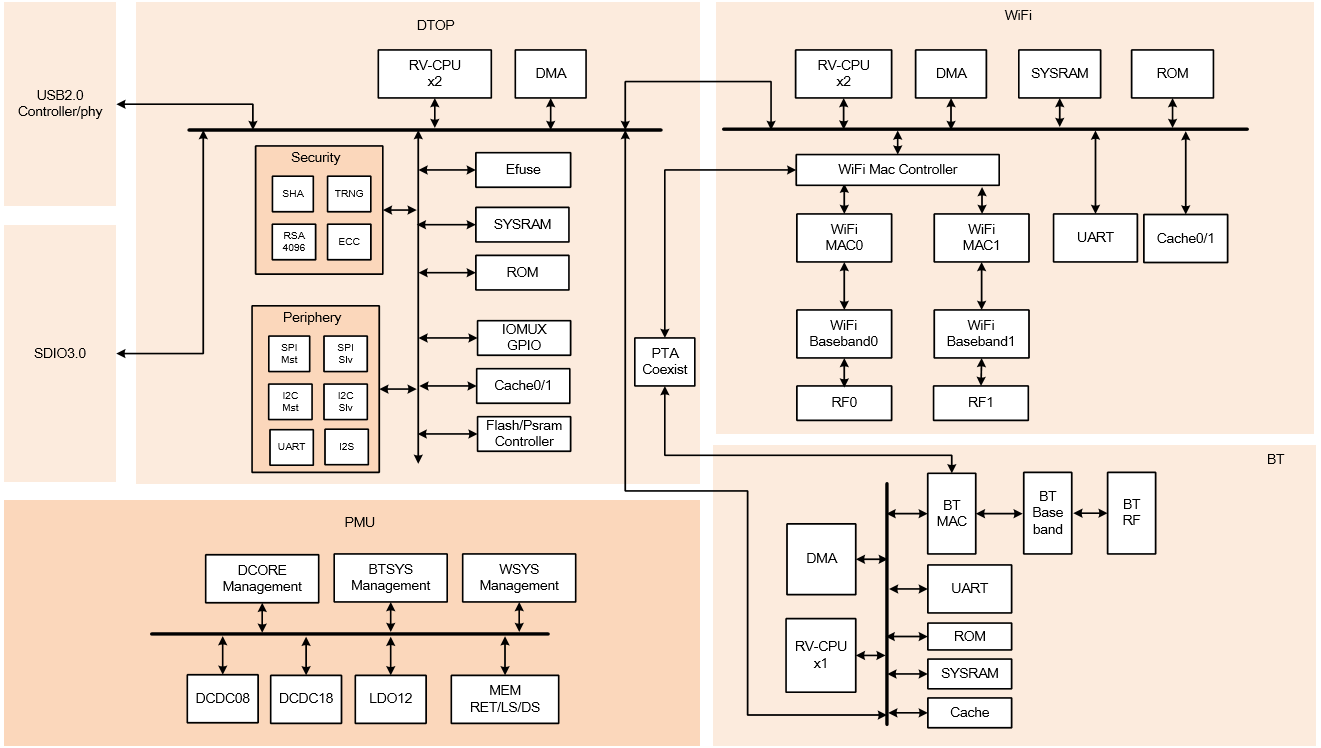

Block diagram
